5m-10m/Min Straight Seam Welding Machine

Name: 5m10mMin Straight Seam Welding Machine
Brand: RUILIAN
Price: 1 USD

Brand Name : RUILIAN

Model Number : RFB-100B

Place of Origin : Hanzhong Shanxi China

MOQ : 1 devices

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1+ devices+a month

Packaging Details : Packing in wooden cases

Device name : Semi-automatic longitudinal seam welding machine for steel drum Straight Seam Welding Machine

Welding diameter : Ø300~Ø500mm

Types of Welded Sheets : Galvanized sheet steel/Low carbon sheet steel/Stainless steel sheet

Welding height : ≤1000mm

Weld thickness : Galvanized sheet steel:0.3~1.0mm/Stainless steel sheet:0.3~1.0mm/Tin Plated Sheet:0.3~1.0mm

Welding beat : 5~8/min

Welding speed : 5~10m/min

Welding copper wire diameter : Ø2.0mm

Overlap : 3~6mm

Cooling water flow rate : 0.4Mpa 8.5L/min

Compressed air : 0.8Mpa 600L/min ≤25°C

Welding power : 100KVA

Contact Now

Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine for steel drum

Welding diameter	Ø300~Ø500mm
Types of Welded Sheets	Galvanized sheet steel Low carbon sheet steel Stainless steel sheet
Welding height	≤1000mm
Weld thickness	Galvanized sheet steel:0.3~1.0mm
	Stainless steel sheet:0.3~1.0mm
	Tin Plated Sheet:0.3~1.0mm
Welding beat	5~8/min
Welding speed	5~10m/min
Welding copper wire diameter	Ø2.0mm
Overlap	3~6mm
Cooling water flow rate	0.4Mpa 8.5L/min
Compressed air	0.8Mpa 600L/min ≤25°C
Welding power	100KVA
Net weight	1.5T

Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine For steel drum

Key words:

Semi-automatic longitudinal seam welding machine for steel drum

Resistance welding

Seam welding

Barrel welding

Sheet metal welding

Resistance welding

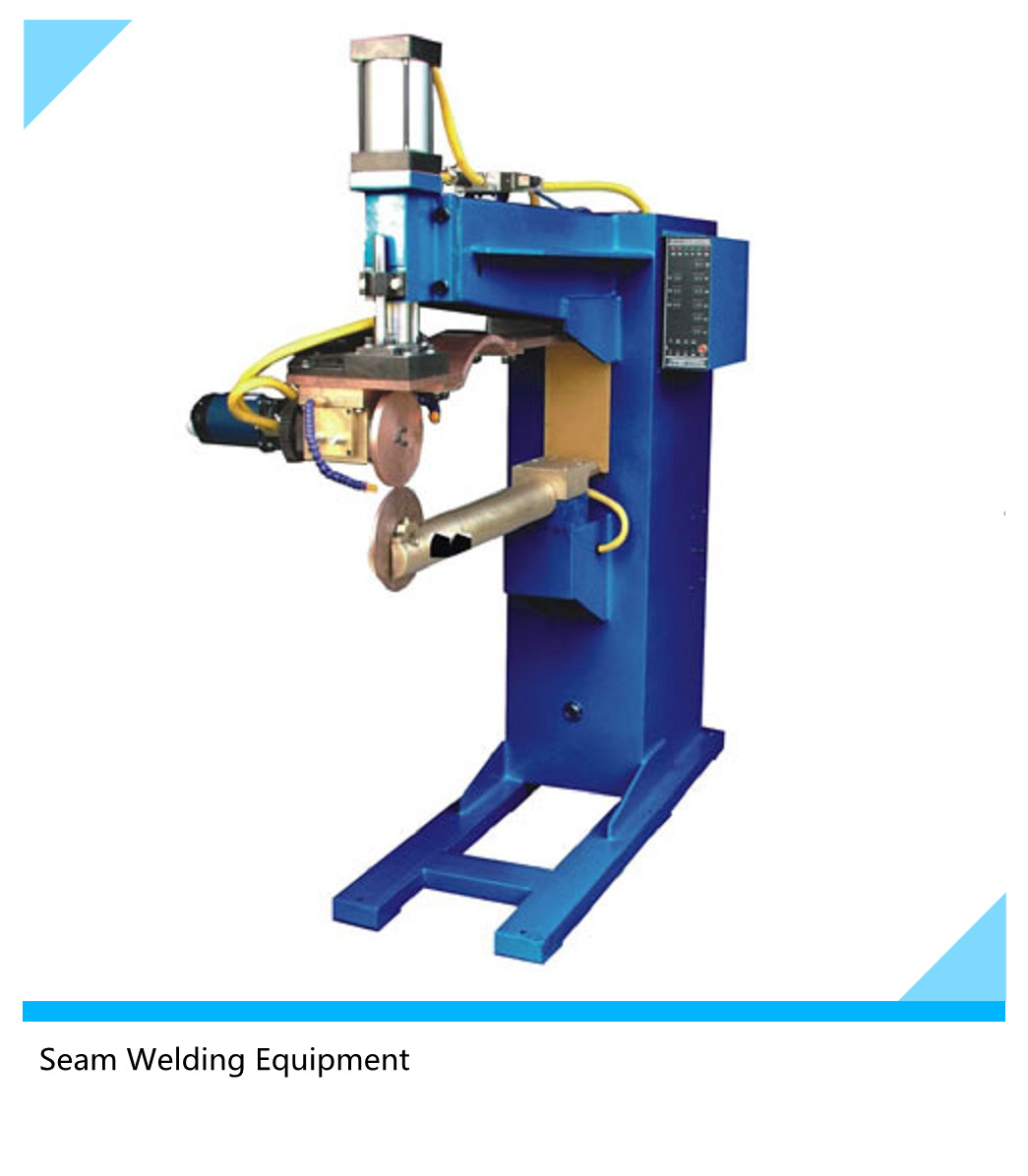

Product of Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine For steel drum

Semi-automatic longitudinal seam welding machine for steel drum

The RFB-100B semi-automatic quick sewing machine has completely updated the load capacity of the RF-100B-based welding energy and added a number of heavy components. The improved RFB-100B welding machine can make the welding speed more stable when welding thick-walled steel drums over 50 liters and has more prominent features for stainless steel products with high hardness. The RFB-100B semi-automatic air welding machine is used for high-speed welding of 50~200-liter corrugated steel drums in the chemical industry, upgrading to a fully automated platform has enabled the target with heavy components and structures.
